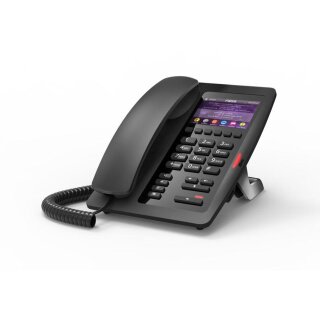

Hotel Phone H5
| Phone Features |
• vxworks OS
• Support SIP2.0 (RFC3261) and correlative RFCs
• SIP support 1 SIP servers, and backup SIP proxy servers
• Supports SIP UDP / TCP/ TLS
• SIP support SIP domain, SIP authentication (none, basic, MD5) , DNS name of server, Peer to Peer / IP Call |
| Key Features |
• 6 Soft keys programmable
• Multi languages displayed(web) |
| Audio |
• HD voice: HD handset
• Codec: G.711A/U, G.723.1 high/low, G.729AB, G.722, G.726-32
• DTMF: in-band, RFC2833 and SIP INFO
• Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO |
| Advanced Features |
• Call transfer ( unattended/ attended/ semi-attended )
• Call holding
• Call waiting
• Redial
• Call completion
• Predial
• MWI
• Flexible dial plan
• Barring function for outgoing calls
• Do not disturb
• Auto answer
• CLIR(rejects anonymous calls)
• CLIP(to make an anonymous call)
• Dial without registration
• Call logs with missed calls/ incoming calls/ outgoing calls. Each support 300 records(Web)
• Speed Dial
• Hotline/Warm-line
• Password dial
• DTMF hidden
• Action URL/ active URI
• Multicast
• Web dial
• Emergency call |
| Network/ Security Features |
• WAN / LAN: 10/100M Ethernet ports (Bridge mode)
• IP Configuration: Static / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN: L2TP (Basic Unencrypted) / OpenVPN
• VLAN
• QoS |
| Deployment & Maintenance |
• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
• Web Management Portal
• Web-based Packet Dump
• Configuration Export / Import
• Firmware Upgrade
• Syslog |
| Physical Specifications |
• LCD: 8,89cm (3,5") (480x320) color screen
• Adapter Input: AC100-240V
• Adapter Output: DC 5V/1A
• WAN Port -10/100 BASE-T RJ-45 for LAN
• LAN Port-10/100 BASE-T RJ-45 for PC
• Handset: RJ9
• Power consumption: IDLE: 2.5W Active: 2.8W
• Operation Temperature: 0~40°C
• Relative Humidity: 10~65%
• Main Chipset: Broadcom
• SDRAM: 16MB
• FLASH: 8MB
• Dimension: 213x170x130 mm |
